Universal Fiber Optic HDMI

Celerity Universal Fiber Optic (UFO) supports HDMI 2.1 connections up to 1000 feet and offer the vey best possible picture quality. Celerity fiber optic cable shows full brightness highlights, and the wide range of colors as originally intended by the video engineers during mastering. Celerity fiber optic cable shows all the details of the video content being played. Celerity fiber optic cables offer isolation from EMI and are plenum rated and can be installed as residential, commercial and infrastructure cabling for current and future needs. Celerity detachable fiber HDMI connectors have received the following medical electrical equipment certifications:

• IEC 60601-1:2005/A1:2012
• EN 60601-1:2006/A12:2014
• EN 55032: 2015
• EN 55024: 2010+A1:2015
• EN 60601-1-2 : 2015

Two Steps, No Tools

Celerity UFO is installed with a simple two-step process of pre-wire and connect. This is made possible by Celerity’s detachable fiber connector and innovation with fiber optics so that fiber terminations, testing and tools are no longer necessary. This ensures reliability and efficient project deployment.

Bi-Directional Cable

The Celerity UFO Cable may be installed from any location between a source and display without the burden of ensuring the cable is in the correct direction. Celerity UFO is designed that each end of the UFO fiber cable acts as a precision optical pathway. Once the Celerity UFO Cable has been installed the UFO Cable is ready for source and display connections. Celerity UFO Cable has received the following certification:

• UL certified as Optical Fiber Non-Conductive Plenum OFNP

UFO Protective Caps

Celerity UFO cables and connectors are terminated with a precision optical lens that must be kept free from dust and debris. Each of these optical lenses are protected by a rubber cap that remains in place until the UFO cables are joined. The UFO Coupler then provides protection for the life of the cable connection.

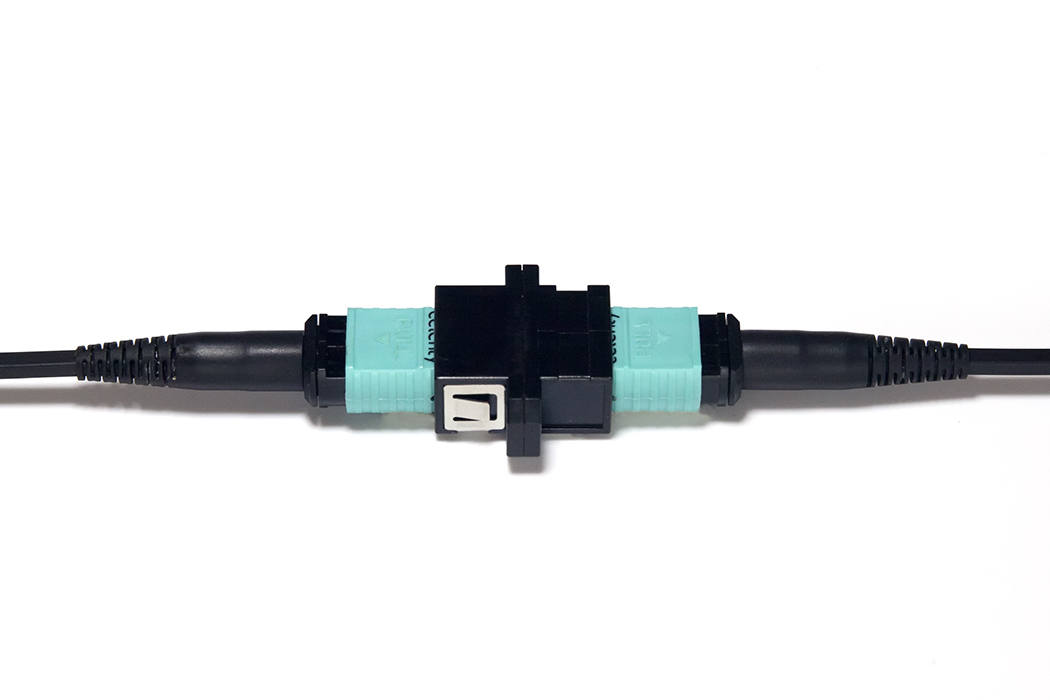

UFO Couplers

Each Celerity UFO cables include a pair of locking couplers that have been designed to ensure correct optical alignment between the UFO cable and the UFO TX and RX connectors.

5V Power

HDMI source components (TX) supply 5V power. Celerity UFO takes advantage of this feature to draw power for the source UFO TX connector. A blue LED on the HDMI connector confirms power. In rare instances, a source component may not provide this signal. For this condition, Celerity provides a hard- wired USB cable to draw power externally when necessary.

Plenum Rated and Medical Grade

Celerity Fiber Optic Cable is plenum rated and UL certified as Optical Fiber Non-Conductive Plenum (OFNP); and the connectors are certified IEC 60601-1 (and others) for medical use.

HDMI 2.1, HDCP 2.3, HDR, eARC

Celerity Fiber Optic HDMI supports
HDMI 2.1, HDCP 2.3, HDR. Celerity Fiber Optic HDMI is the only 100% fiber solution with eARC support.

HDMI Data Support

Celerity Fiber Optic HDMI supports Display Data Channel (DDC), High Bandwidth Digital Content Protection (HDCP) and Extended Display Information Data (EDID). Hot Plug is also supported.

Specifications

• Data rate Up to 48 Gbps
• Resolution Up to 8K@60Hz
• Supported features
• HDMI High Speed
• HDCP 1.4/2.2/2.3
• HDR
• CEC
• Dolby Vision
• Up to 4:4:4 color sampling

• eARC
• LED status indicator at T & R HDMI connectors, powered LED verifies connectivity
• Power T: 0.5W R: 0.5W; 5V DC
• Temperature / Humidity -04ºF - 158ºF (-20ºC - 70ºC) / 0% - 90% RH
• Fiber optic cable pull strength - 60 pounds

Available as connectors or sets with cable

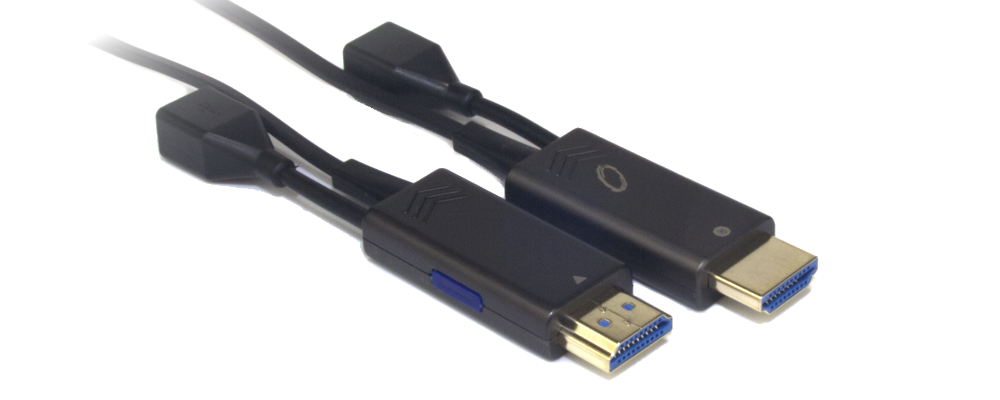

• UFO-8KH-TXRX
• Pair, Transmit and Receive HDMI Detachable Connectors
• UFO-8KH-RX
• Receive HDMI Detachable Connector
• UFO-8KH-TX
• Transmit HDMI Detachable Connector
